Seal Arrow V3 (with labels)

  • iconThe metal collet with an enhanced design
  • iconThe lock cap glows when exposed to UV light
  • iconExtra working length
  • iconPatent-protected items from the manufacturing company

0,2345 CAD

TECHNICAL DATA SHEET PRODUCTS REQUEST
  • iconThe metal collet with an enhanced design
  • iconThe lock cap glows when exposed to UV light
  • iconExtra working length
  • iconPatent-protected items from the manufacturing company

Product specifications

  • Security seal style:Pull-tight seals Pull-tight seals
  • Material:Polypropylene Polypropylene
  • Temperature conditions of intended use:-50° C to +120° С -50° C to +120° С
  • Dimensions:440×20,8×8,8 mm 440×20,8×8,8 mm
  • Tail diameter:2,4 mm 2,4 mm
  • The seal's working length:385 mm 385 mm
  • Lock type:A metal collet with an enhanced design A metal collet with an enhanced design

Description

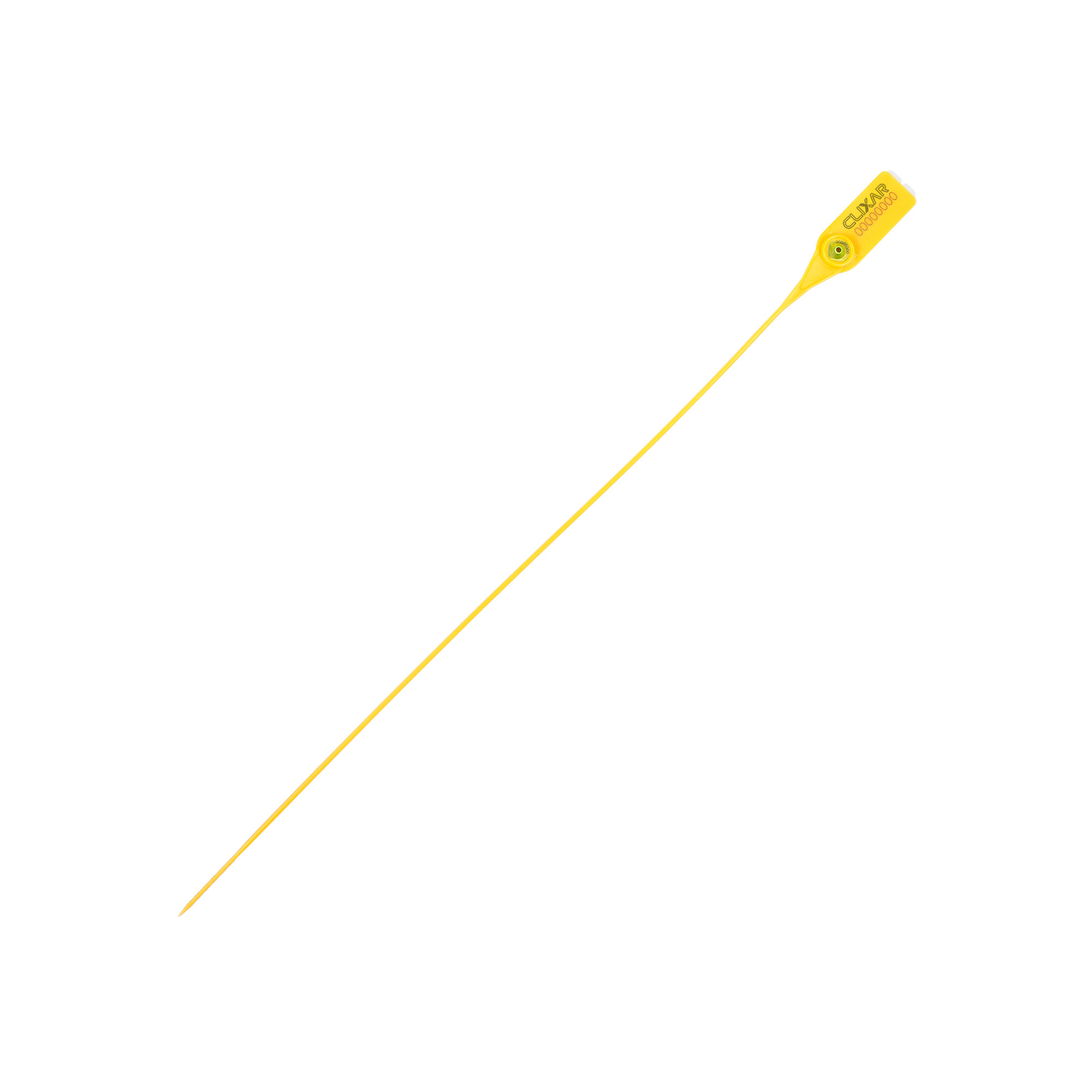

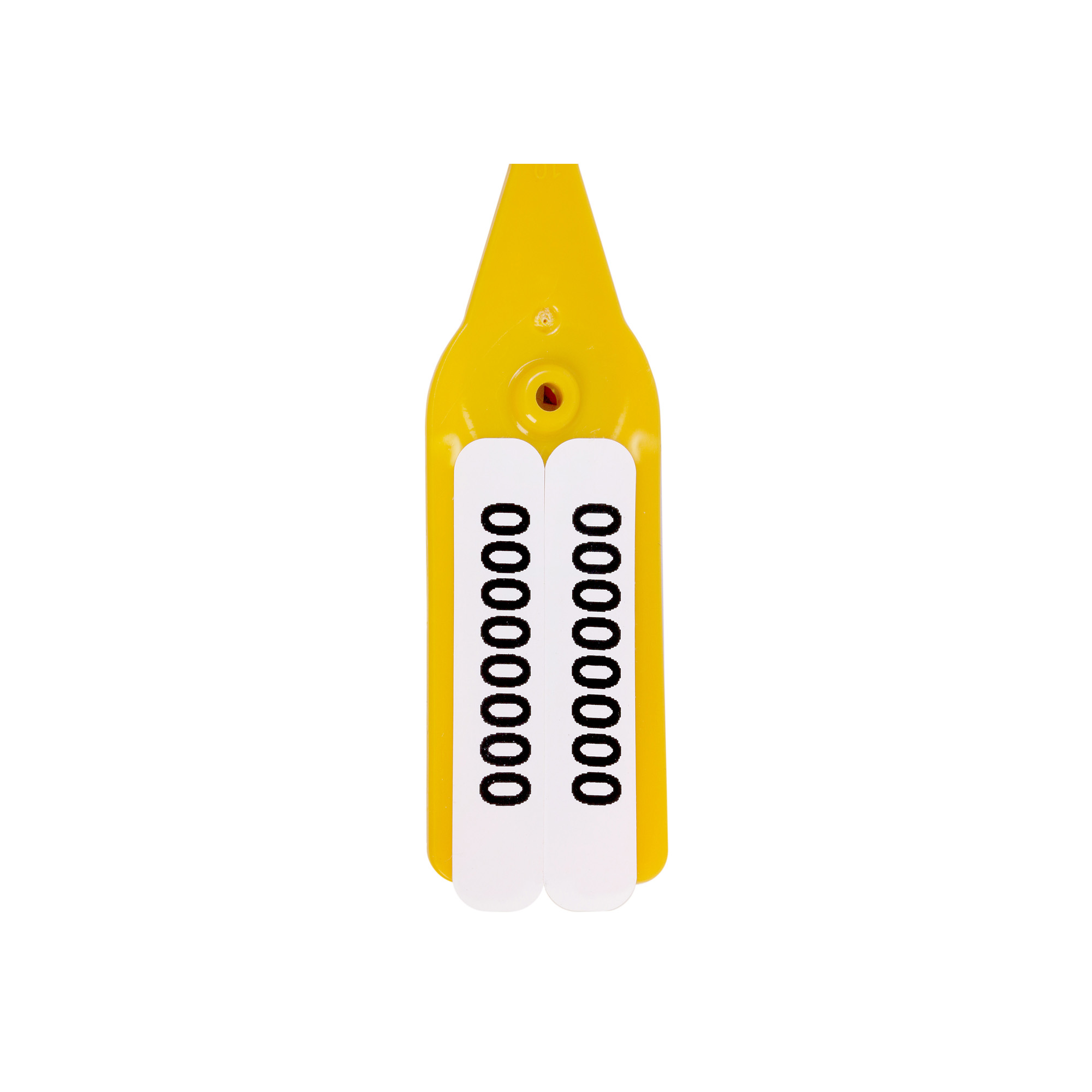

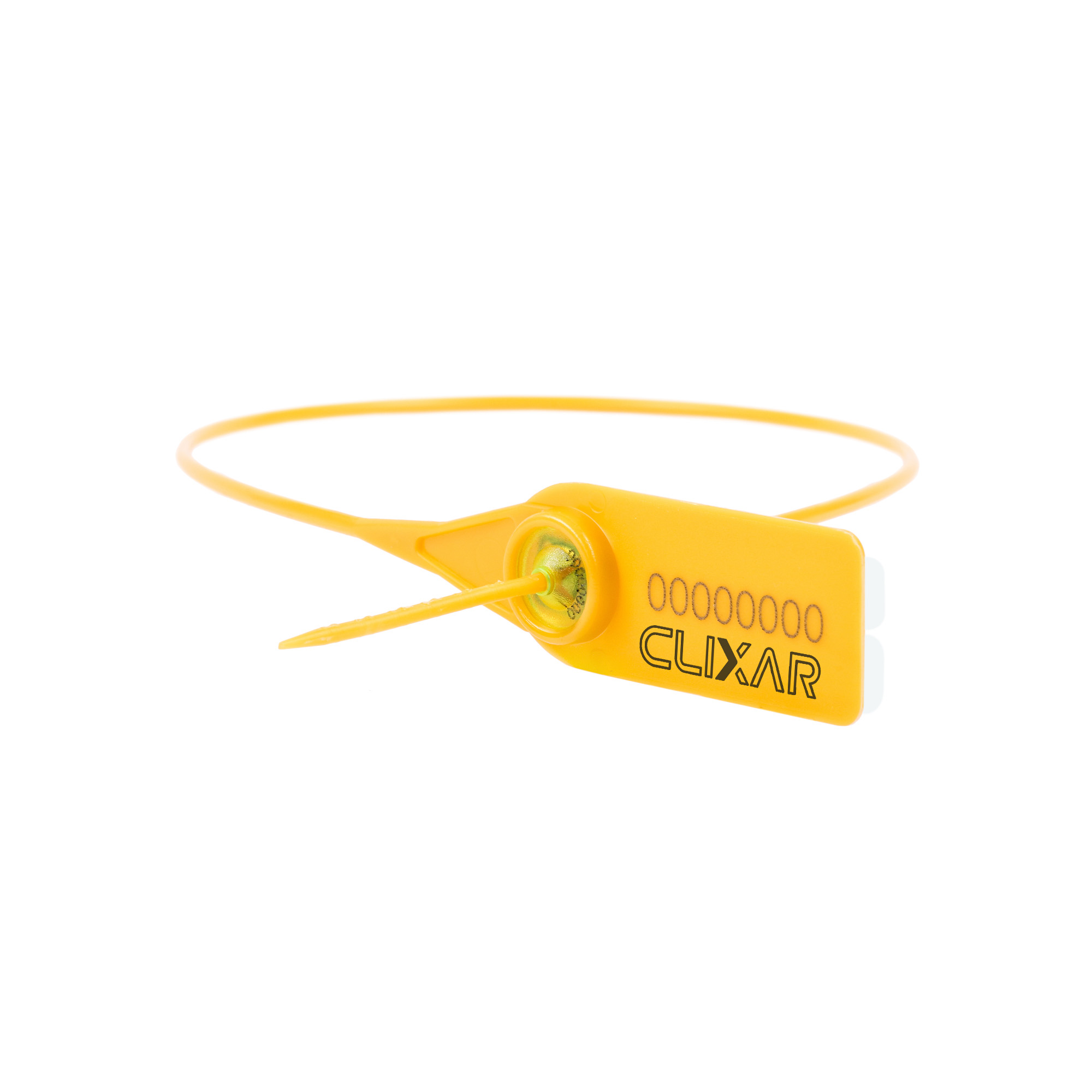

A tamper-evident seal Arrow V3 is produced from polypropylene. These are pull tite seals by their design that have a flag with a locking mechanism latch and a tail component. The locking mechanism is between the flag and the shank. It has a metal collet with four petals. The working length of the seal is 385 mm (15.16″). Arrow V3 pull tight seals are made with labels on the back of the seal.

The locking mechanism is a collet with petals that are oriented in one direction, which prevents the seal tail from reversing movement and therefore from opening unnoticed. If anyone attempts to open the seal and extract the tail, the lock will cut off the tail, rendering the seal unrecoverable.

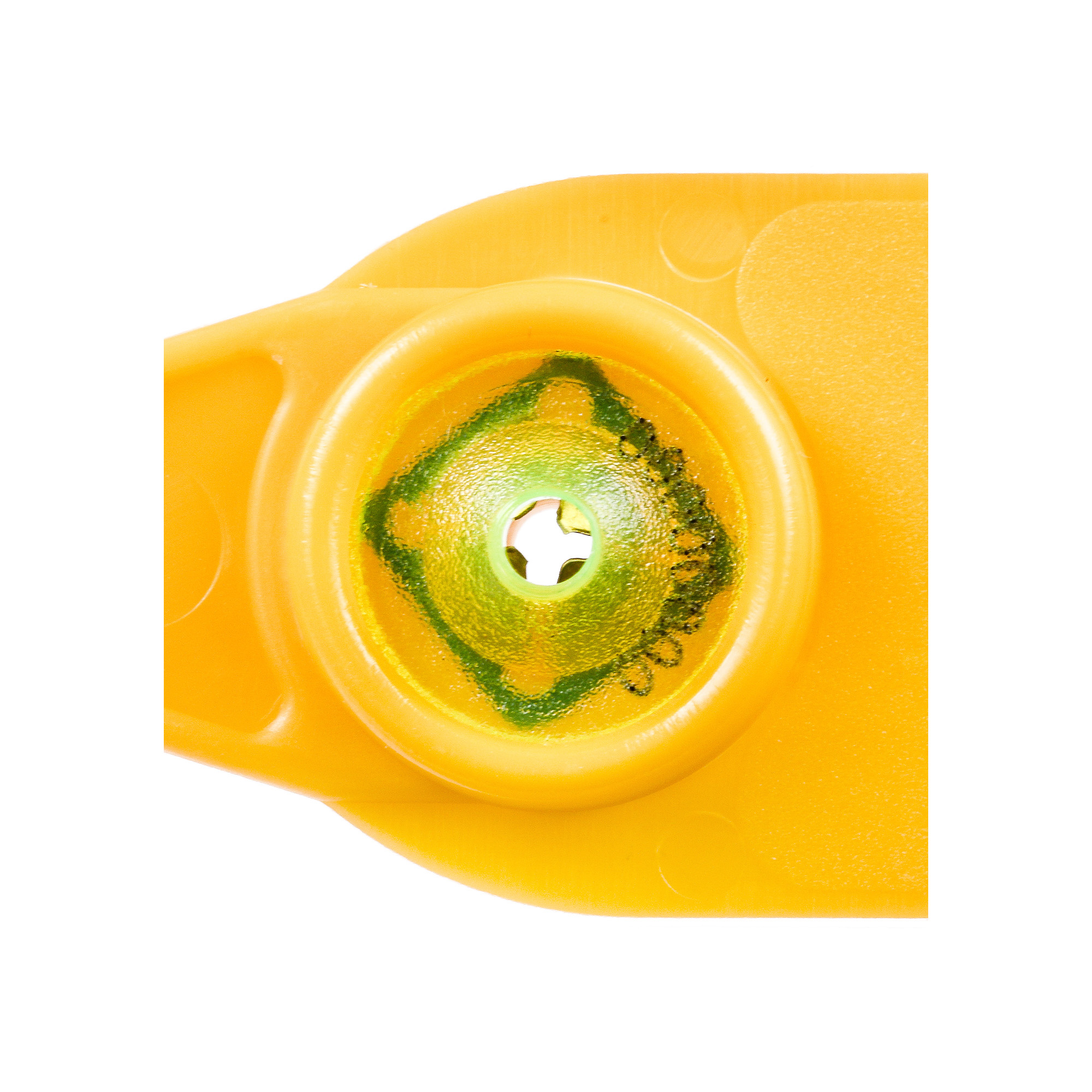

The collet is protected from external damage by a transparent cap that allows it to verify its integrity at any time. It is easier to locate the seal in shadowy conditions by using a special effect of shining under UV light of the cap.

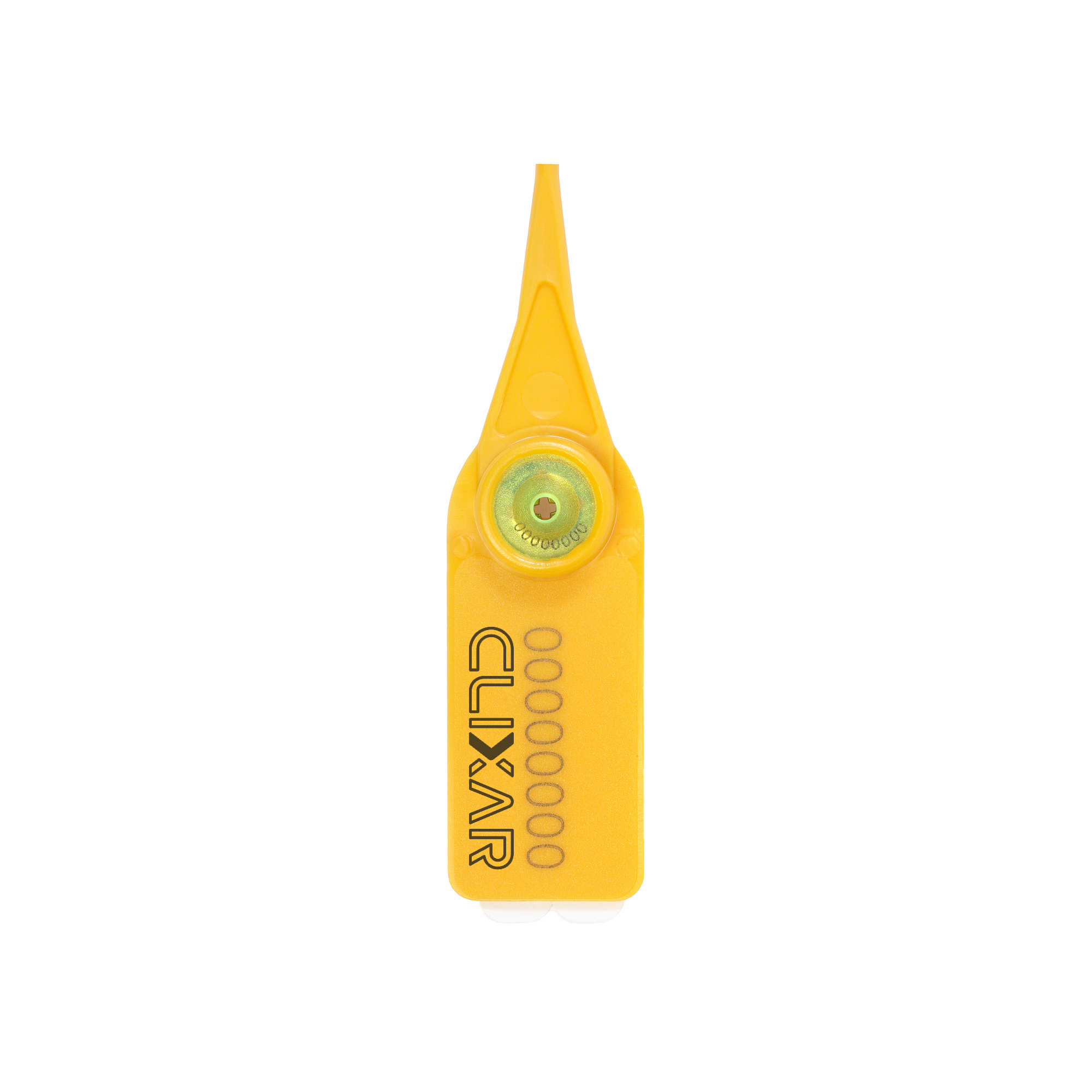

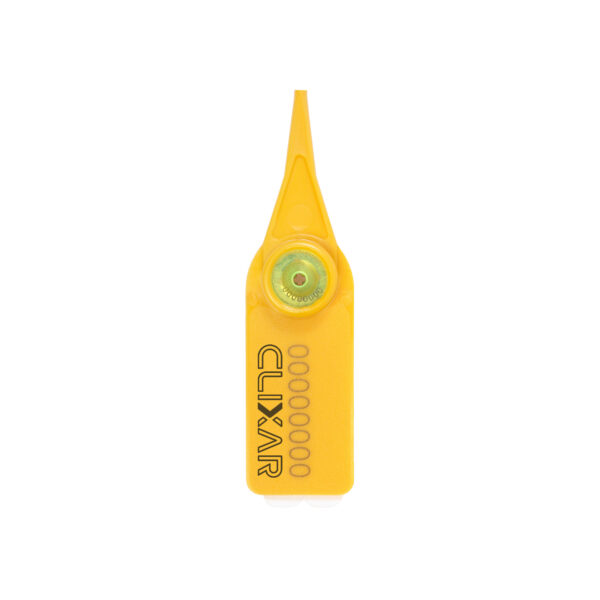

The unique customized number is engraved on the flag of the Arrow V3 theft-proof seal. Because it is applied through the thickness of the seal’s surface, it’s impossible to wipe it off without noticeable signs remaining. Additionally, your logo, QR code, and barcode can be engraved with a laser for individualized identification.

The advantages of pull tight plastic security seals Arrow V3:

  • The metal collet with an enhanced design;
  • The lock cap glows when exposed to UV light;
  • Patent-protected items from the manufacturing company;
  • Extra working length.

The tug tight plastic security seals Arrow V3 by CLIXAR are developed to safeguard against unapproved penetration to assets such as:

  • fuel tanks, etc.
  • containers;

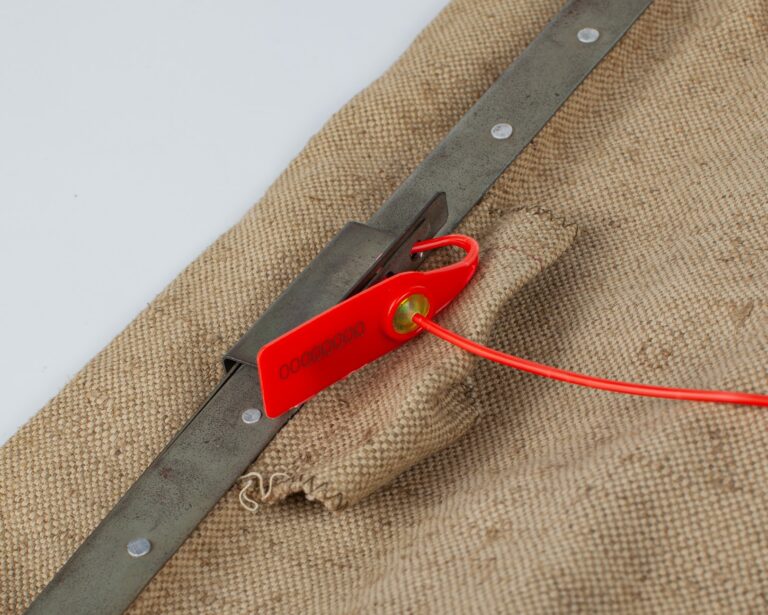

  • cash deposit bags;
  • gasoline stations;
  • fuel tanks;
  • facilities;
  • vehicles, etc.

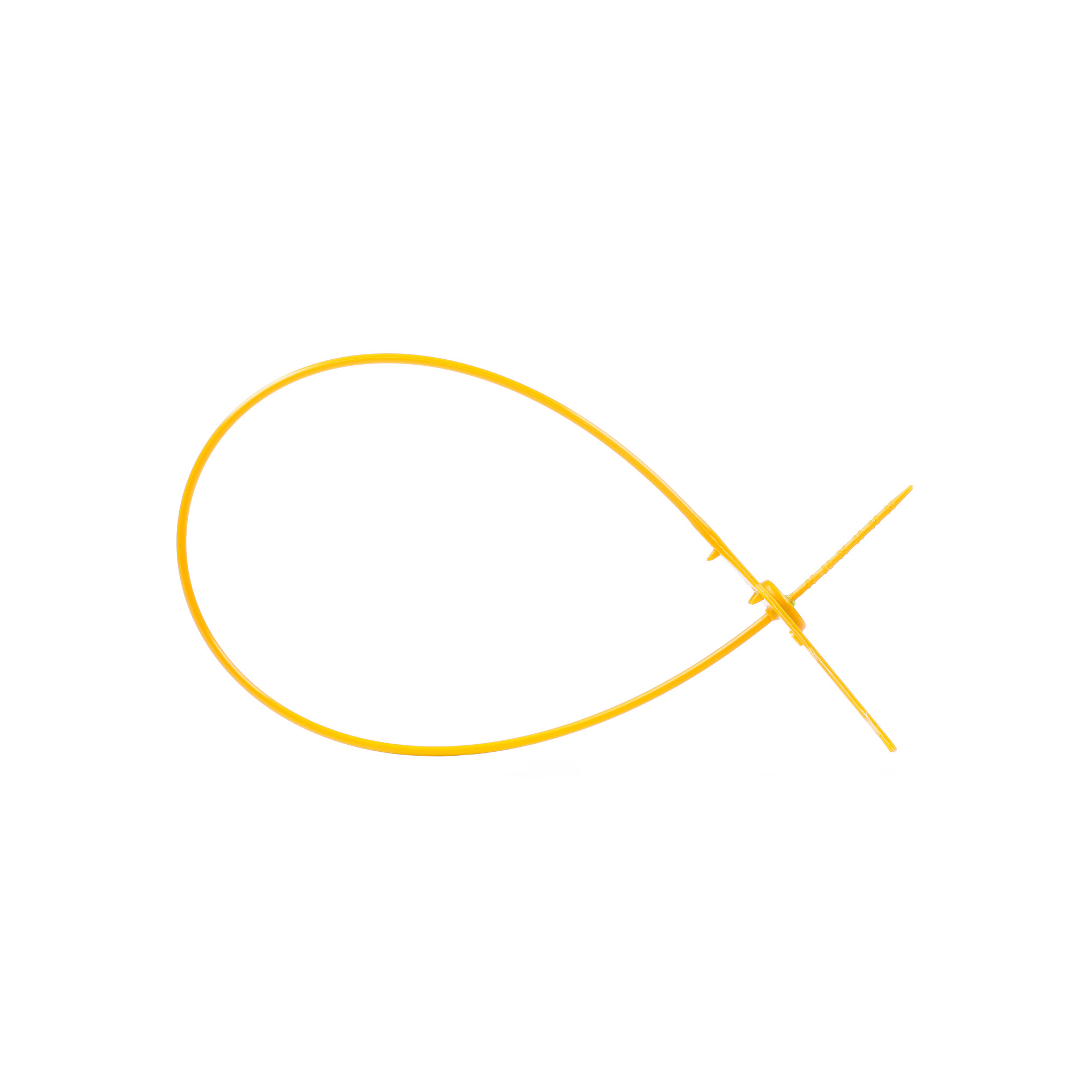

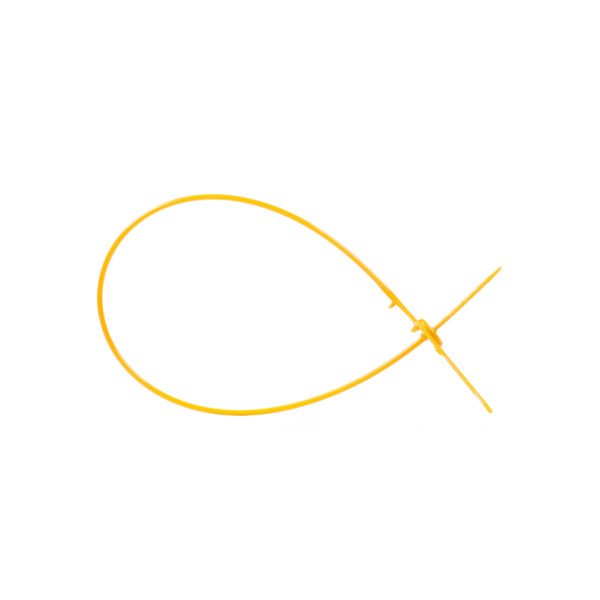

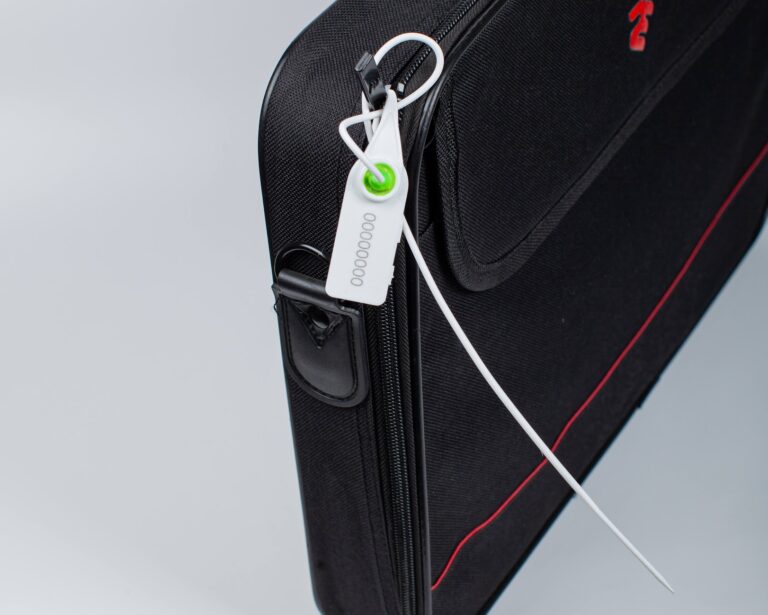

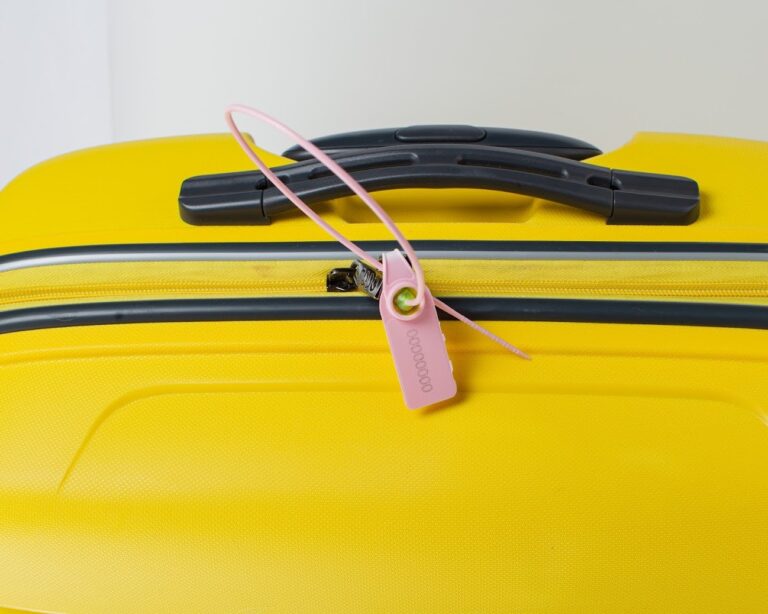

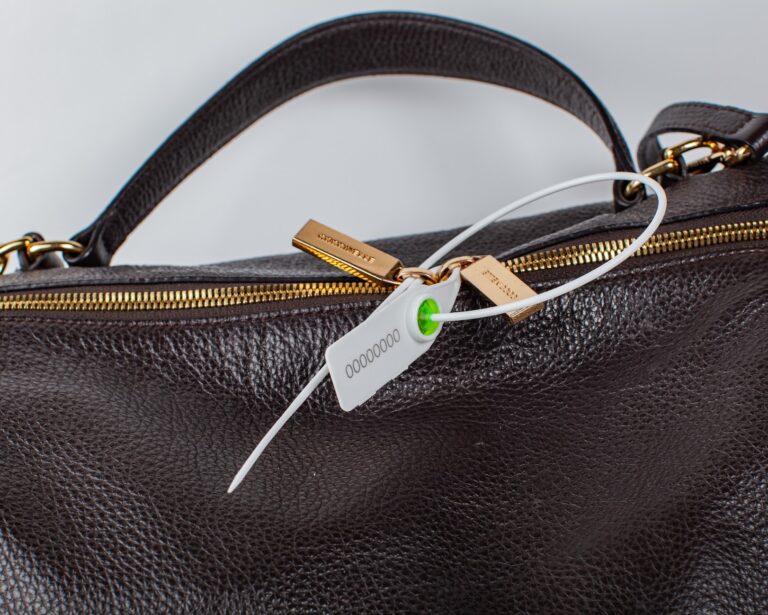

The tightening seal is installed by pulling the tail part through the eyelets of the item to be sealed and inserting it into the slot of the locking mechanism on the backside of the catch.

Transport, banking, agriculture, and other industries employ the tamper-proof seal Arrow V3.
