Anti-magnetic security sticker seal magnet M2

  • iconThe security seal sticker and its capsule have the same distinctive number on each one.
  • iconThe concealed inscription “OPENED” appears.
  • iconPatent-protected items from the manufacturing company.

2,2050 CAD

TECHNICAL DATA SHEET PRODUCTS REQUEST
  • iconThe security seal sticker and its capsule have the same distinctive number on each one.
  • iconThe concealed inscription “OPENED” appears.
  • iconPatent-protected items from the manufacturing company.

Product specifications

  • Security seal style:Anti-magnetic tamper seal sticker Anti-magnetic tamper seal sticker
  • Dimensions:60х25 mm 60х25 mm
  • Diameter of capsule:12 mm 12 mm
  • Degree of sensitivity to the continuous magnetic field exposure:50 or 100 mT 50 or 100 mT
  • Temperature conditions of intended use:-40° С to +60° С -40° С to +60° С
  • Temperature conditions of setting up:+5° С to +50° С +5° С to +50° С
  • Timing to the sealed surface adherence:5 minutes 5 minutes

Description

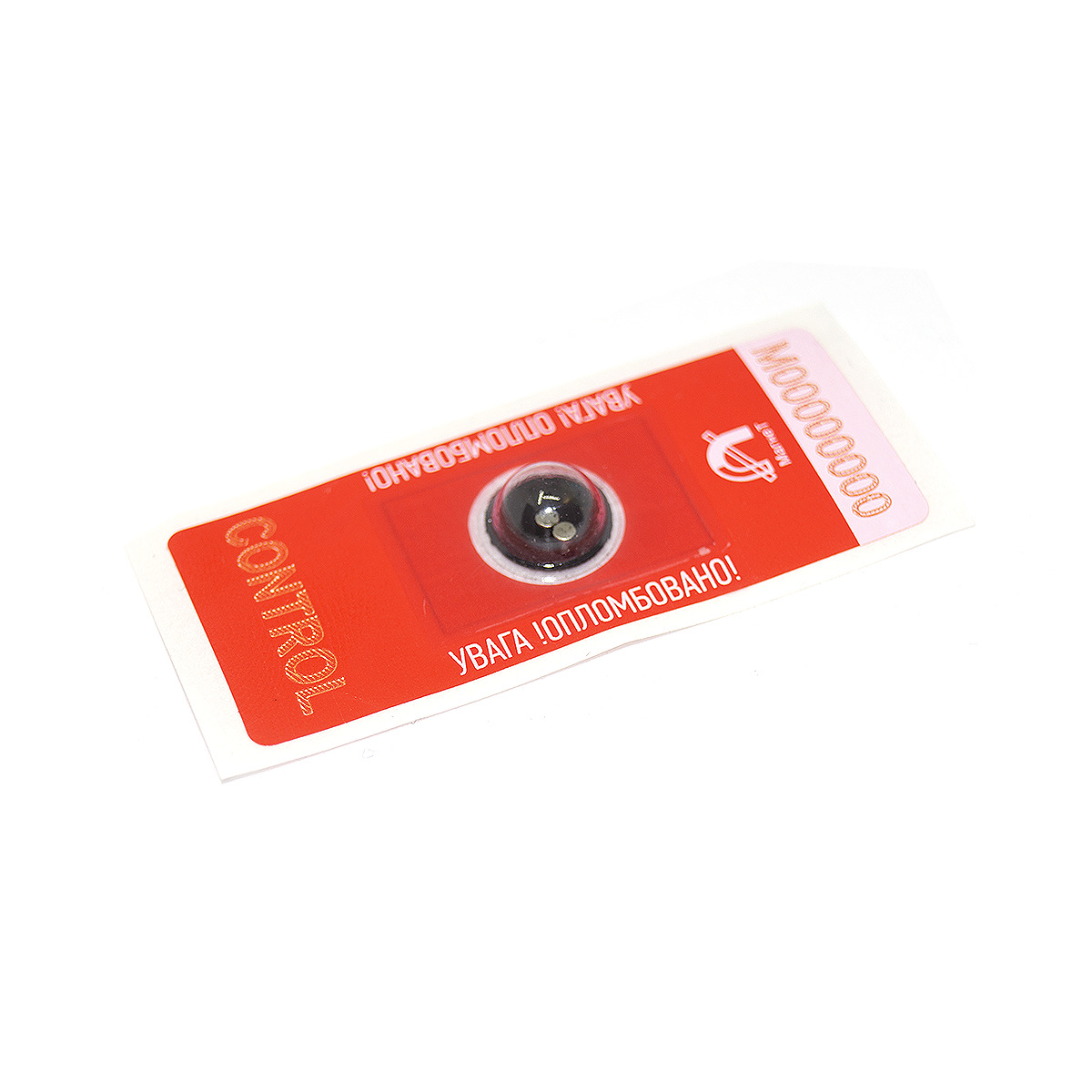

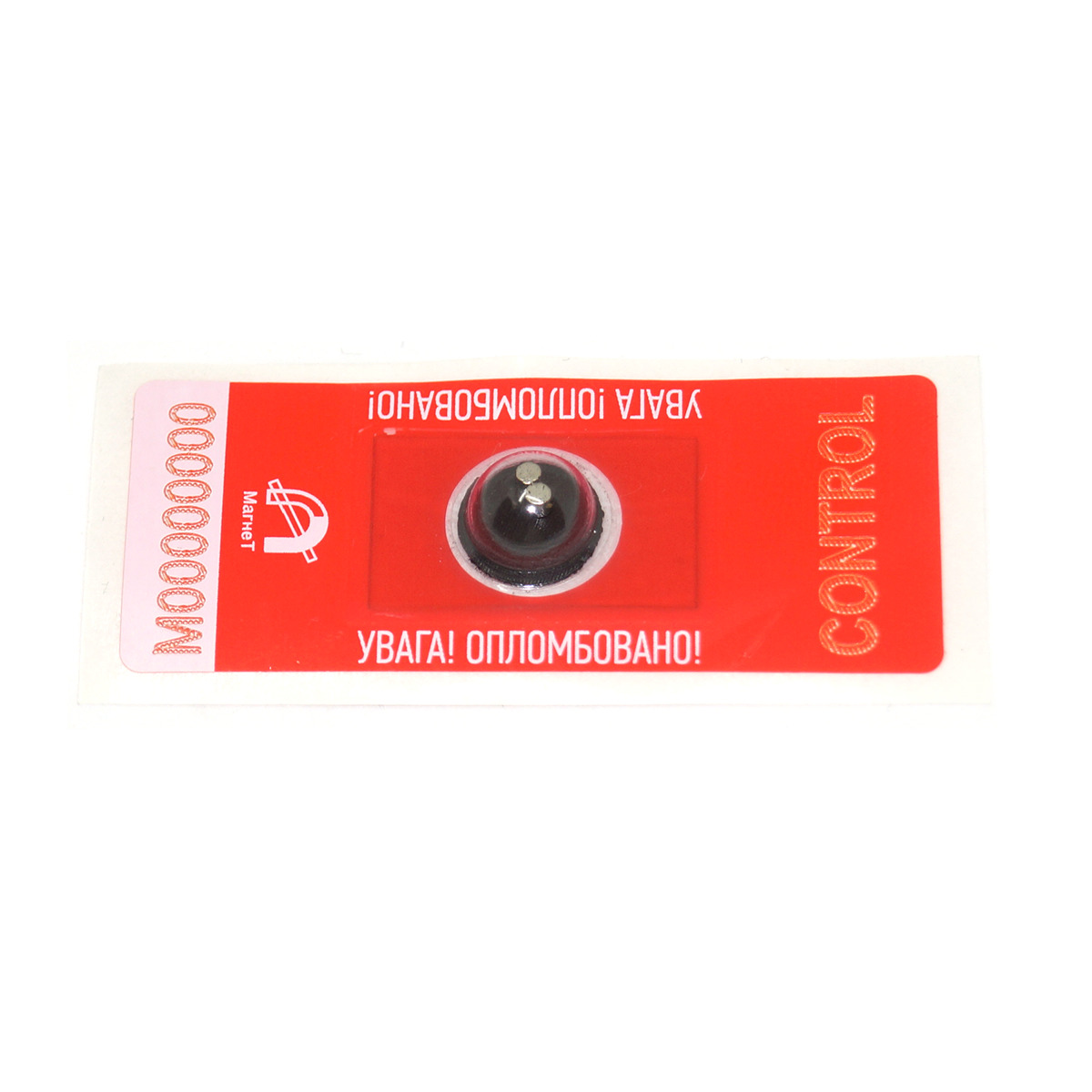

The Magnet M2 is designed as an anti-magnetic seal with a sticker core and a transparent capsule. The anti-magnetic security sticker’s special adhesive coating allows applying the seal to metal, glass, polymeric, and painted surfaces.
The Magnet M2 is a magnetic field indicator sticker seal, which contains a capsule with a sensitive element (rare earth magnet) placed on it. Under the exposure to a constant magnetic field, the capsule irrevocably alters its shape.

The tamper-evident security sticker seal Magnet M2 has a special lettering “OPENED” that appears when someone tries to take the seal off the surface of the object. This lettering does not vanish even if someone tries to reattach the seal. This extra protection makes it easier for inspectors to find signs of tampering with seals.

To prevent counterfeiting and to keep recording of anti-magnetic security stickers Magnet M2, the seal’s core and capsule are marked with an identical particular number. This number can be employed to figure out whether the seal or capsule has been substituted with an alternative one. Additionally, it is possible to order custom tamper proof labels by incorporating the logo of your organization onto the anti magnetic seal Magnet M2 for swift identification.

The significant features of the anti-magnetic seal Magnet M2 by CLIXAR are as follows:

  • The security seal sticker and its capsule have the same distinctive number on each one.
  • The concealed inscription “OPENED” appears.
  • Patent-protected items from the manufacturing company.

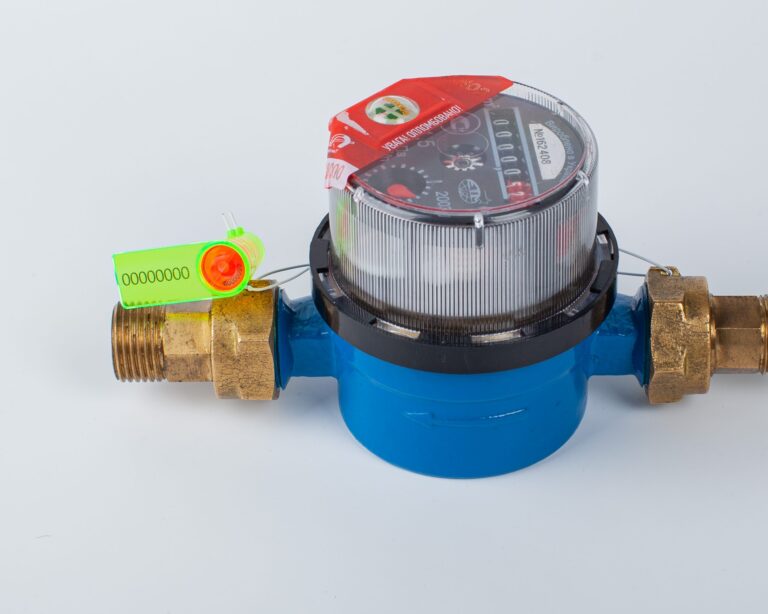

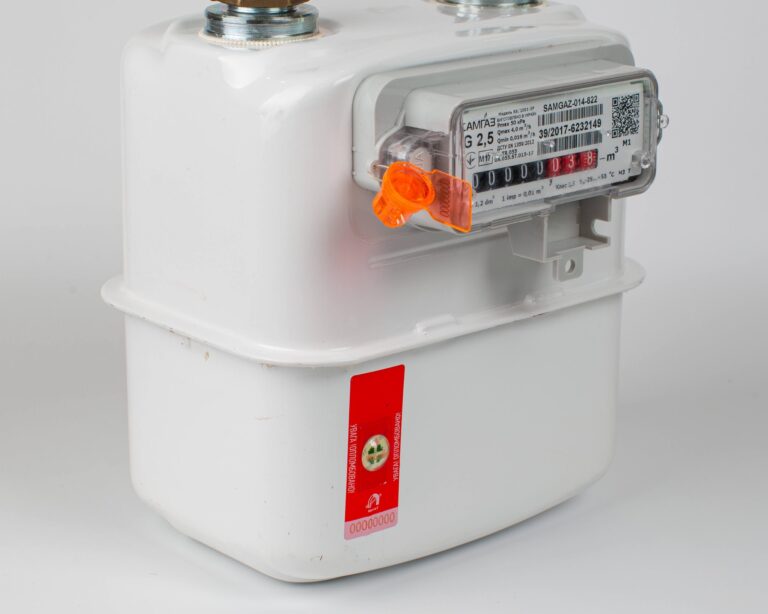

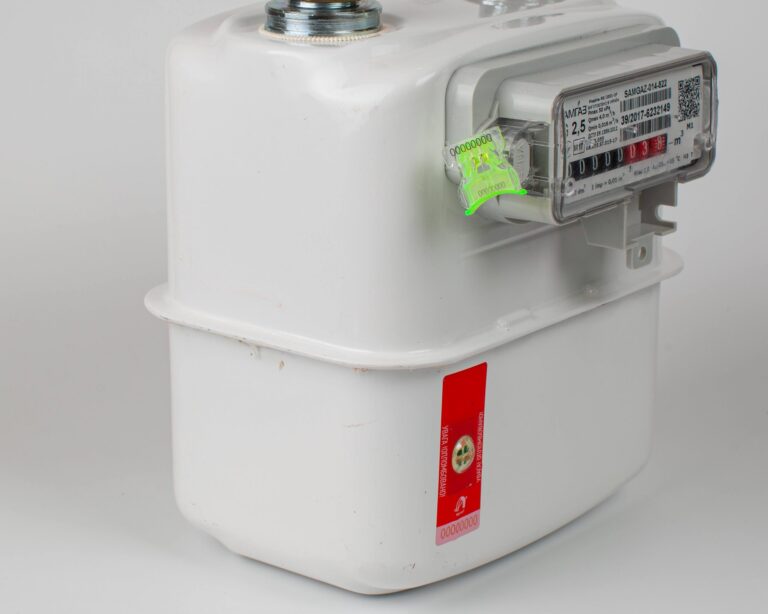

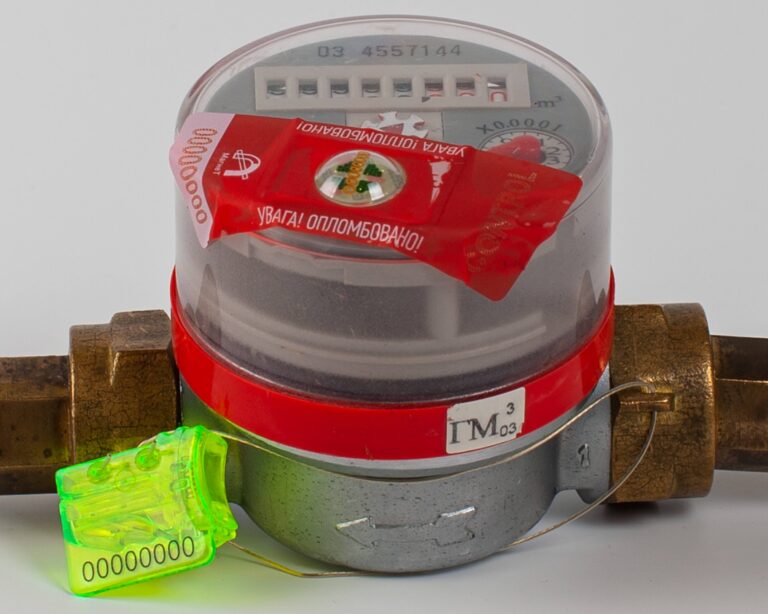

  • The Magnet M2 is a sticker seal used for all types of meters, including gas, water, and electricity.

To apply the anti-magnetic seal on the meter, clean the surface with an alcohol-based detergent, remove the seal from its core coating, stick it to the item to be sealed without taking out the capsule from the label. Thereafter, flatten it out and allow it to fix for 5 minutes.

Regulatory agencies and companies responsible for the installation, repairing, and monitoring of metering devices are usual utilizers of the tamper-evident anti-magnetic seal Magnet M2.
