• iconPossible to mount on new valve types
  • iconTemperature conditions of intended use: -50⁰ С to +120⁰ С
  • iconPatent-protected items from the manufacturing company

0,9800 CAD

TECHNICAL DATA SHEET PRODUCTS REQUEST
  • iconPossible to mount on new valve types
  • iconTemperature conditions of intended use: -50⁰ С to +120⁰ С
  • iconPatent-protected items from the manufacturing company

Product specifications

  • Device type:Blocking device Blocking device
  • Material:Polycarbonate Polycarbonate
  • Dimensions:168х48х24 mm 168х48х24 mm
  • Outer diameter of the inserted pipe:26 mm 26 mm
  • Aperture diameter:3 mm 3 mm
  • Temperature conditions of intended use:-50° C to +120° С -50° C to +120° С

Description

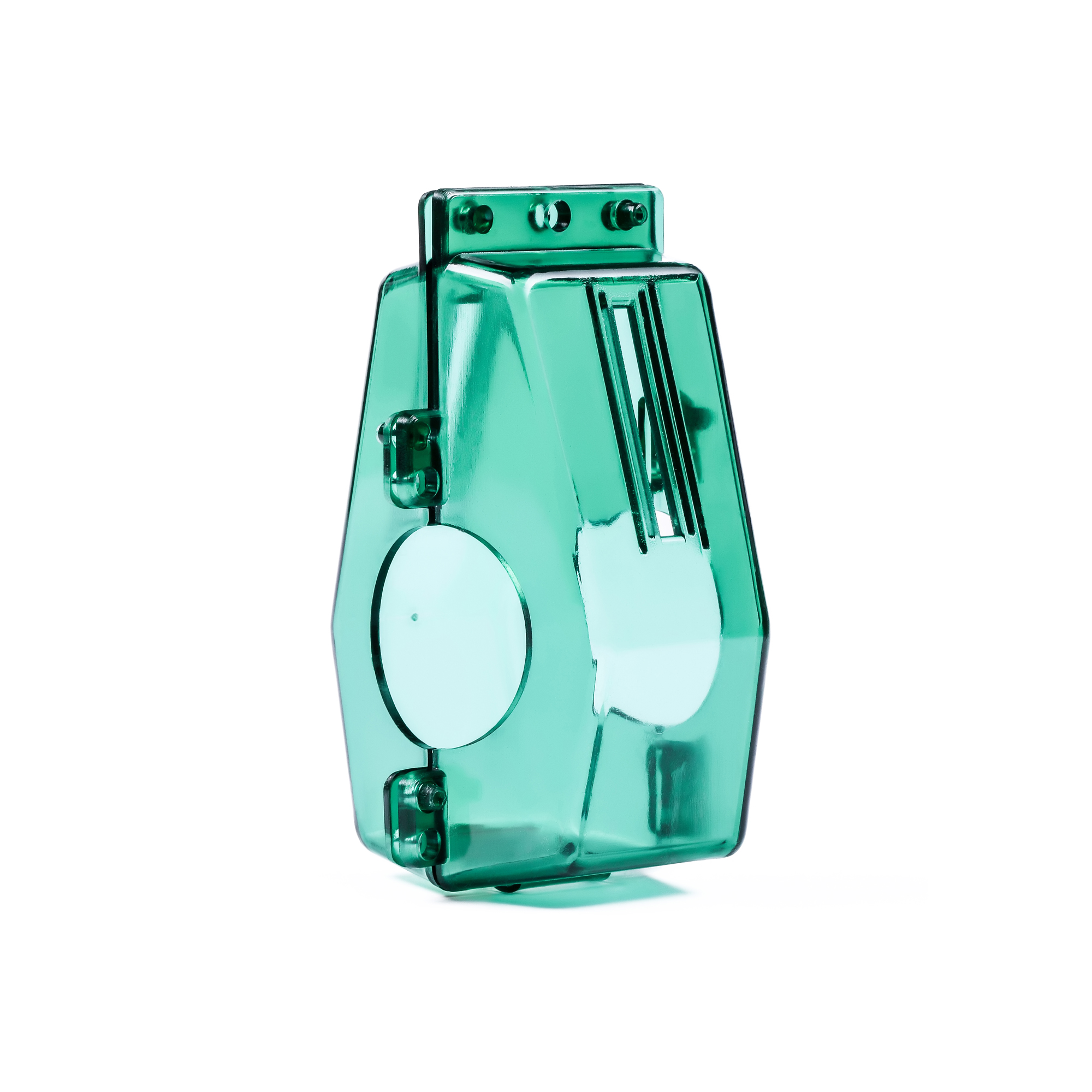

The PGK is a valve locking device constructed from polycarbonate that is utilized to hinder access to the valves of gas and water supplying piping systems.

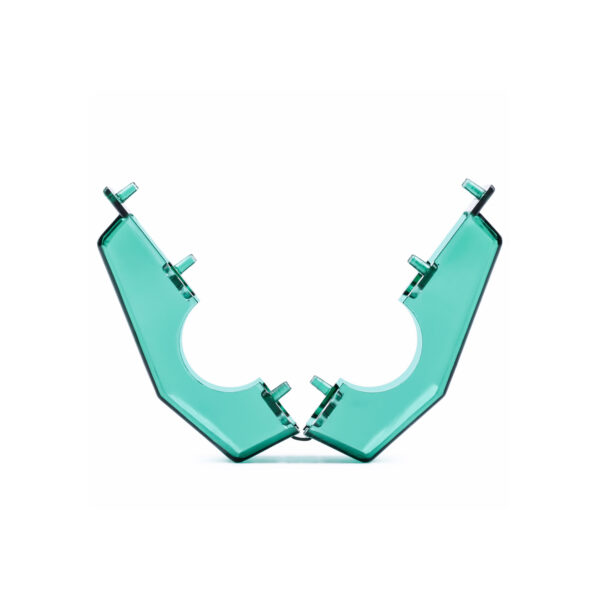

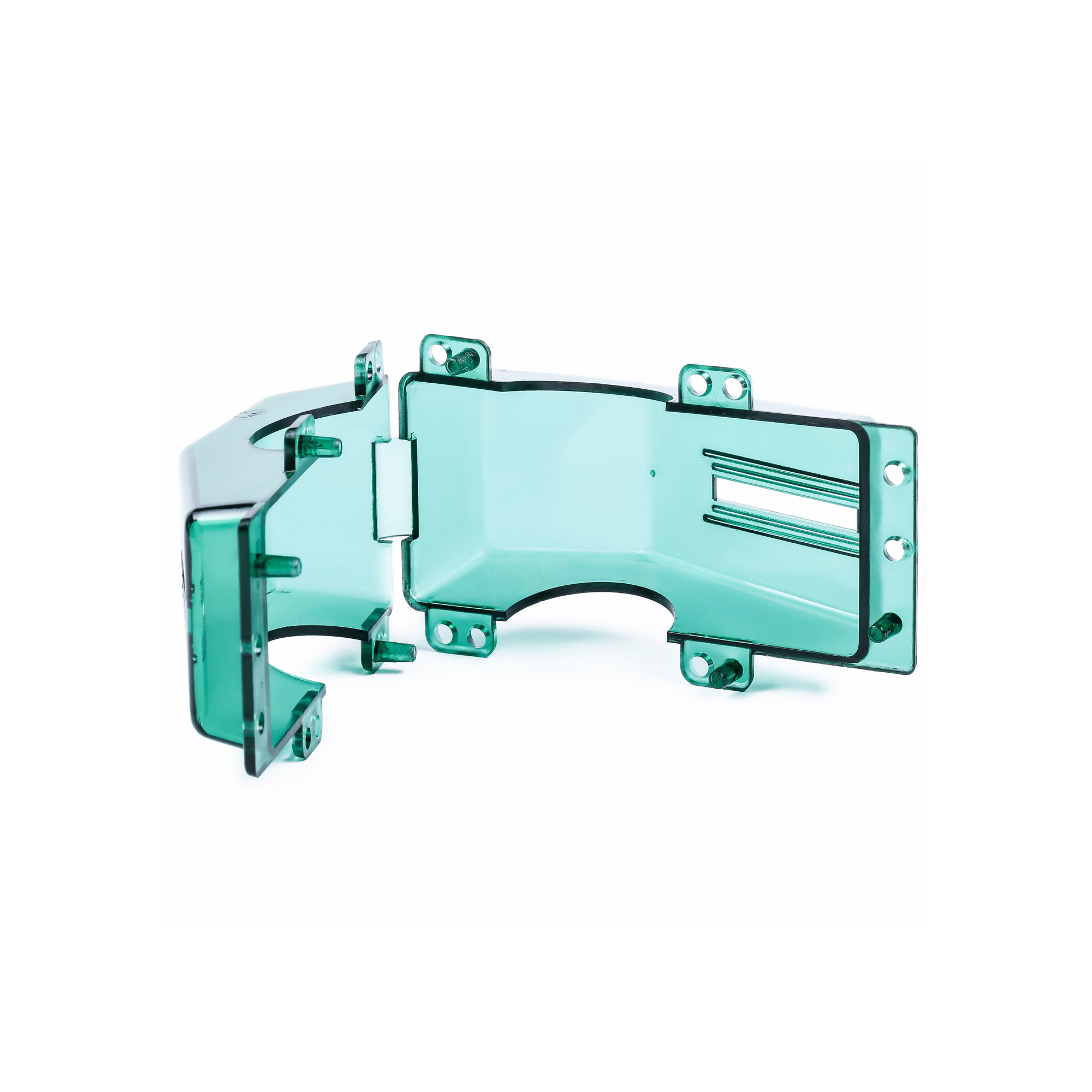

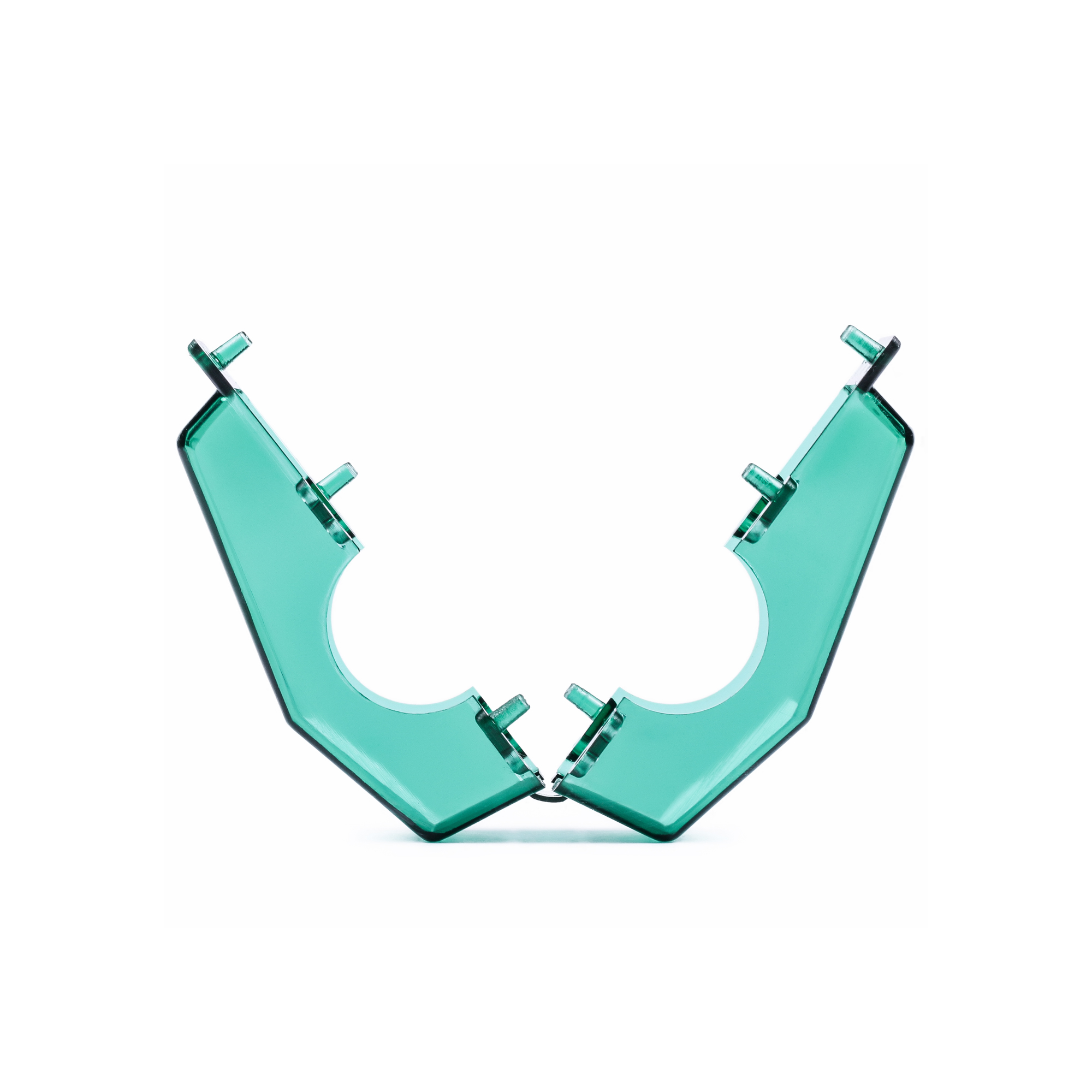

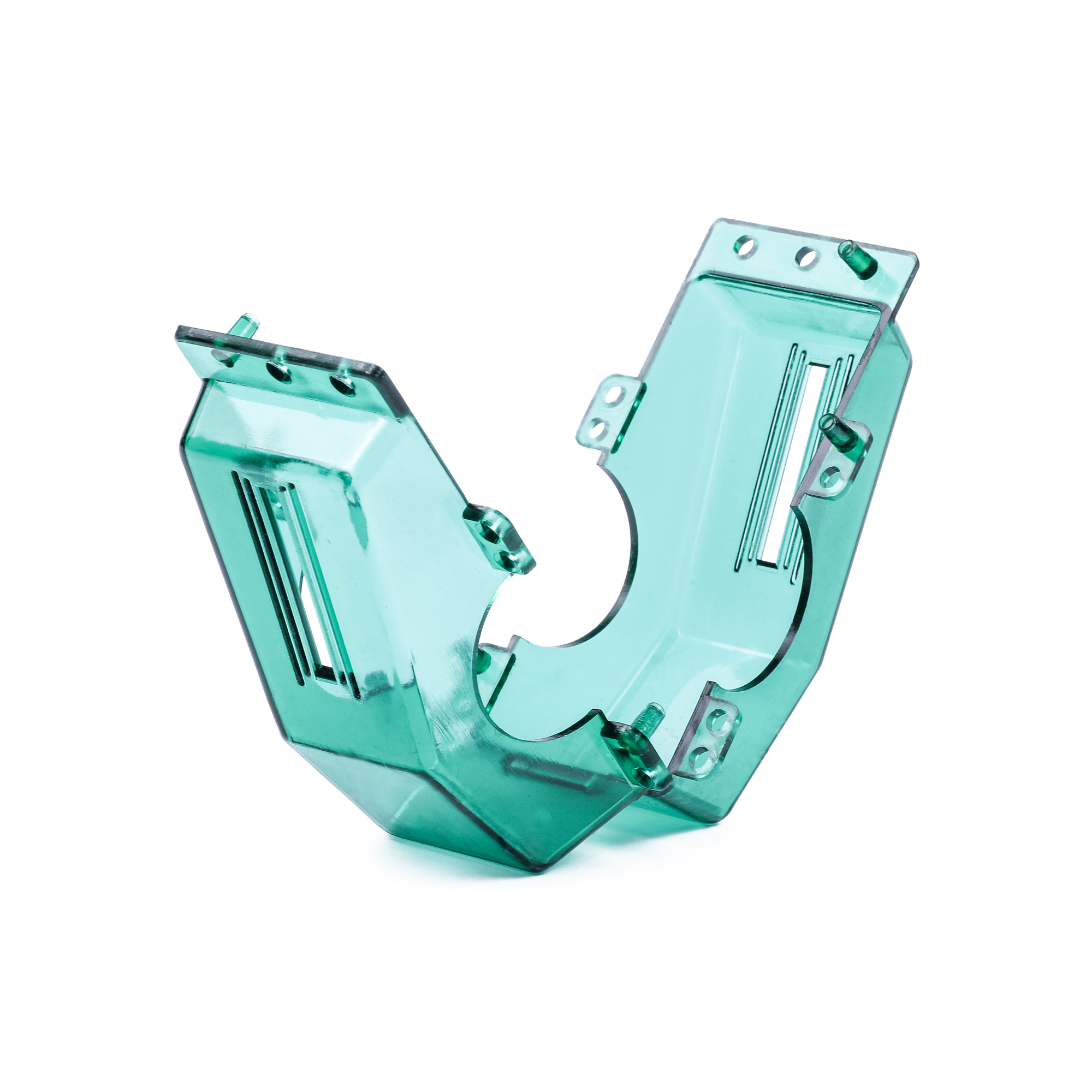

The locking device PGK is composed of two components that are meant to be mounted on the valves of gas and water piping systems. In order to secure the locking device, it is necessary to insert the sealing wire rope through the designated apertures on the PGK lock. The procedure should be finished by the deployment of a rotary or latch safety seal that is to be securely bound to the blocker with a cable. This excludes the possibility of detaching the valve locking device without any obvious traces of breaking the seal.

We recommend employing the valve locking device PGK to hinder penetration to the valves both in households and at industrial manufacturing facilities. The seal facilitates the verification of any attempted removal of the locking device with the purpose of stealing gas or water.

Here are some advantages of the valve locking device PGK:

  • Usable with new types of taps and valves;
  • Temperature conditions of intended use: -50⁰ С to +120⁰ С;
  • Patent-protected items from the manufacturing company.

There are numerous industries and household application areas where the valve locking device PGK is extensively used to regulate the gas and water consumption.

Manufacturing facilities, retail facilities, households, and utility infrastructure are examples of the range of applications.
