• iconThe metal collet with an enhanced design
  • iconThe lock cap glows when exposed to UV light
  • iconExtra working length
  • iconPatent-protected items from the manufacturing company

0,2240 CAD

TECHNICAL DATA SHEET PRODUCTS REQUEST
  • iconThe metal collet with an enhanced design
  • iconThe lock cap glows when exposed to UV light
  • iconExtra working length
  • iconPatent-protected items from the manufacturing company

Product specifications

  • Security seal style:Pull-tight seals Pull-tight seals
  • Material:Polypropylene Polypropylene
  • Temperature conditions of intended use:-50° C to +120° С -50° C to +120° С
  • Dimensions:440×20,8×8,8 mm 440×20,8×8,8 mm
  • Tail diameter:2,4 mm 2,4 mm
  • The seal's working length:385 mm 385 mm
  • Lock type:A metal collet with an enhanced design A metal collet with an enhanced design

Description

Tug tight seals Arrow Lux are produced from polypropylene. There is a locking mechanism with a protective cap between the flag and the tail component of the tightener. A tug tight seal structure is composed of a flag, a locking mechanism, and a tail element. The locking mechanism comprises a metal collet of a more sophisticated design, which ensures dependable protection against the opening of the seal. Large and bulky assets can be handled with ease with the seal extended working length of 385 mm (15.16″).

The flag and cap are laser-engraved with an eight-digit numerical code to secure the CLIXAR pull tight seals. It is impossible to entirely remove the marking and put on a new number or change a pull tight plastic seal because it is engraved through the thickness of the seal surface. We also offer the option to incorporate your company logo, QR and barcodes, and other pertinent information on the seal flag.

The locking mechanism comprises a metal collet of enhanced design, which affords dependable protection against the seal breaching. Users can securely fasten the seal tail in one direction by pulling it in that way. The collet petals always return to their original positions, and when you try to pull the seal tail back, they cut it off, making it impossible to open this locking mechanism.

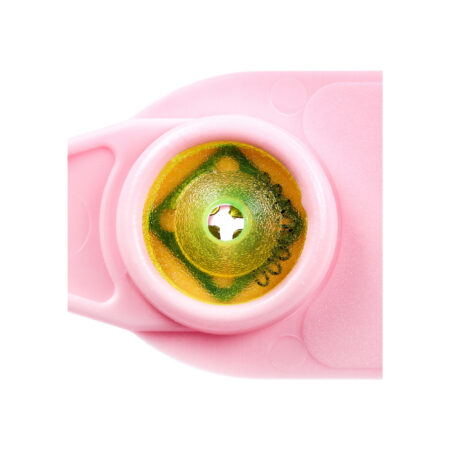

The translucent cap affords extra safety to the collet and permits constant surveillance of its structural integrity throughout the process.

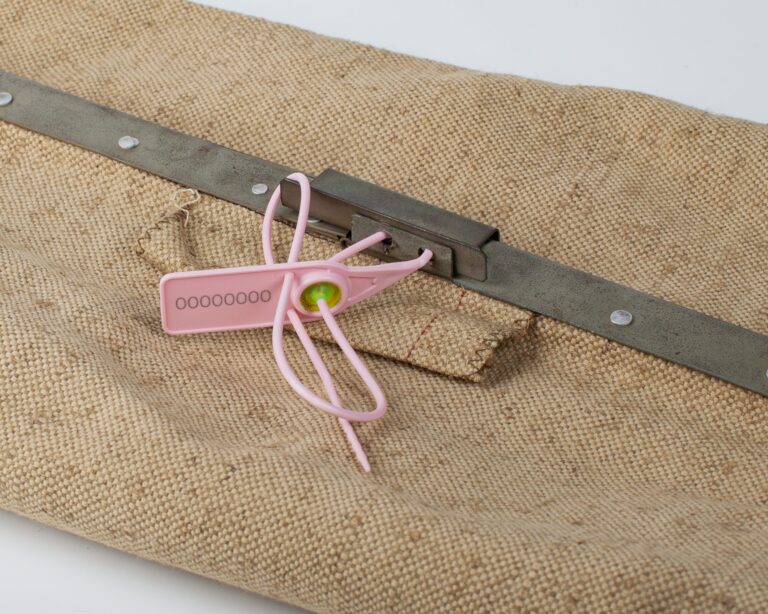

There are special tenons on the rear portion of the pull tite seal for simple applications on the bags.

The advantages of the pull-tight seals Arrow Lux:

  • The metal collet with an enhanced design;
  • the lock cap glows when exposed to UV light;
  • extra working length;
  • patent-protected items from the manufacturing company.

Pull tight plastic security seals Arrow Lux are developed to safeguard against unapproved penetration to assets such as:

  • containers;
  • facilities;
  • packing materials;
  • vehicles;
  • fuel tanks, etc.

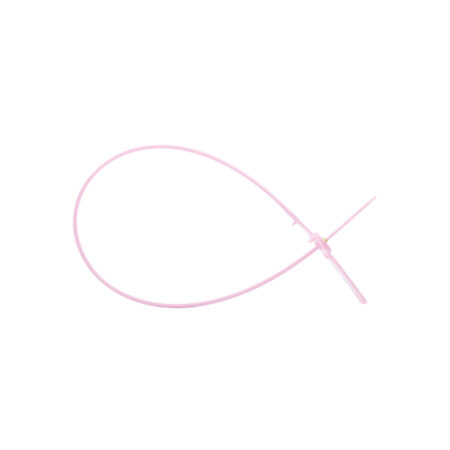

Here is an easy locking instruction. The tail must be inserted into the eyelets of the item to be sealed, pulled through the lock, and tightened until it stops.

The Arrow Lux indicator seal serves as a reliable safeguard against unapproved intrusion

The pull-tight seal is one of the most common types of plastic security seals. It is a polymeric shank with a locking mechanism. The tail can only traverse in a single direction. The seal’s tail will tear if someone attempts to pull it out of its body. As a result of this feature, any attempt at prohibited penetration will be promptly detected, enabling instant response.

The Arrow Lux seal is a polypropylene-made pull-tight security seal. Its design is composed of a pull-tight unit with a flag and a tail. The flag bears an individual number that is unique and unrepeatable on any other seal. This feature of the Arrow Lux seal significantly enhances the safety and security of assets sealed with it.

The advantages of pull tight security seals Arrow Lux

Pull-tight safety seals are diminutive yet possess exceptional strength and dependability. The locking mechanism has an upgraded metal collet that effectively safeguards against opening the seal. As a result of this design feature, the seal tail can be strained in a single position and secured in place. Once you do this, you can’t remove the seal without leaving a sign.

The advantages of the Arrow Lux seal include the following:

  • the metal collet with an enhanced design;
  • the lock cap glows when exposed to UV light;
  • extra working length of 385 mm;
  • patent-protected items from the manufacturing company.

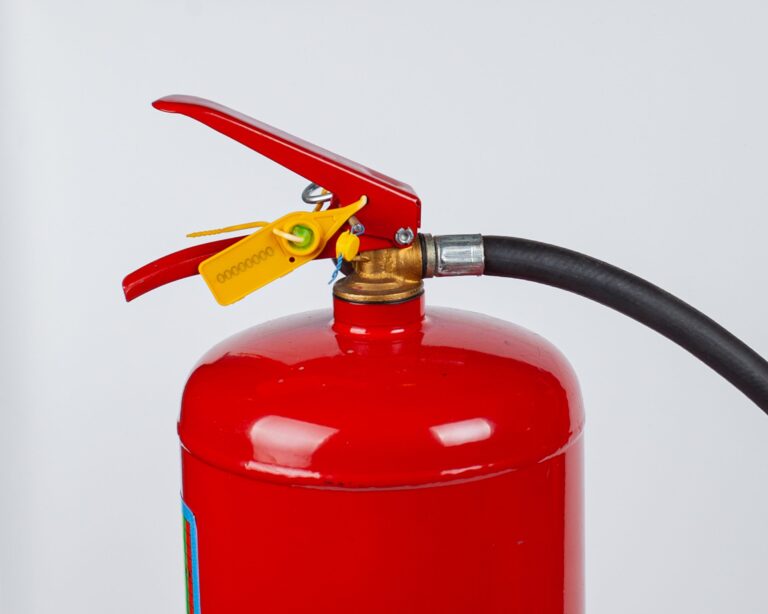

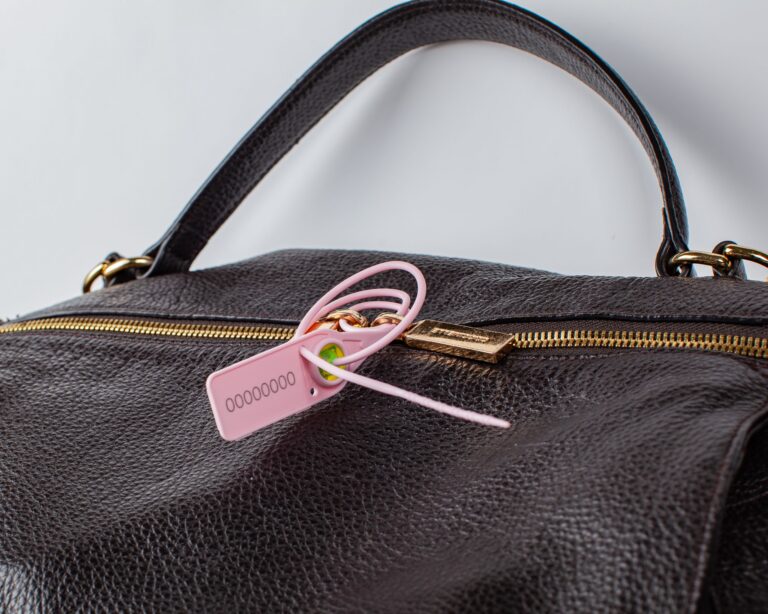

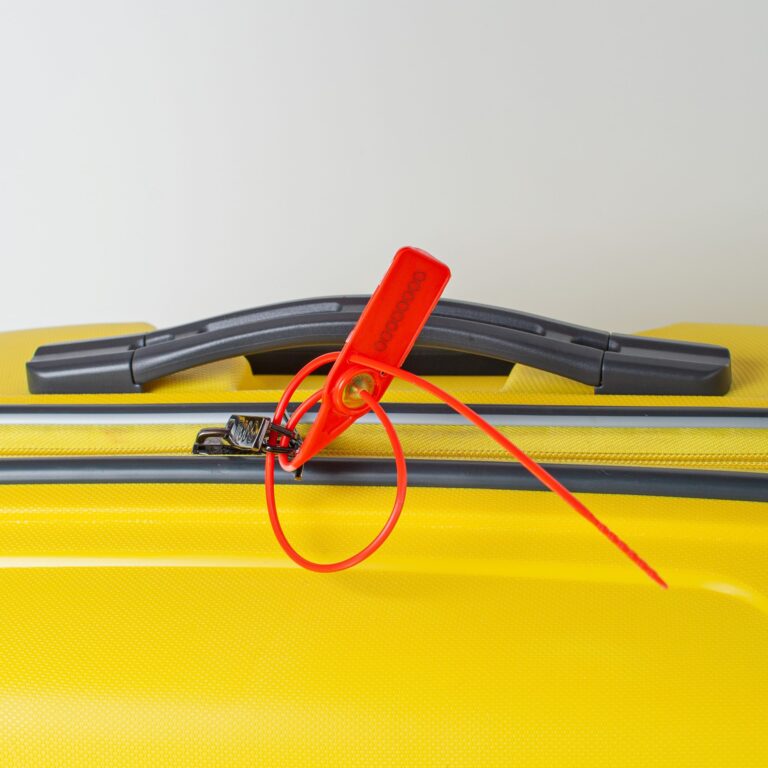

Diverse objects such as car doors, fuel tanks, banking deposit bags, banking money bags, boxes, containers, and other packages can be sealed with the disposable numbered seal Arrow Lux.
